Product type：TFT Module
Show contents：320x480

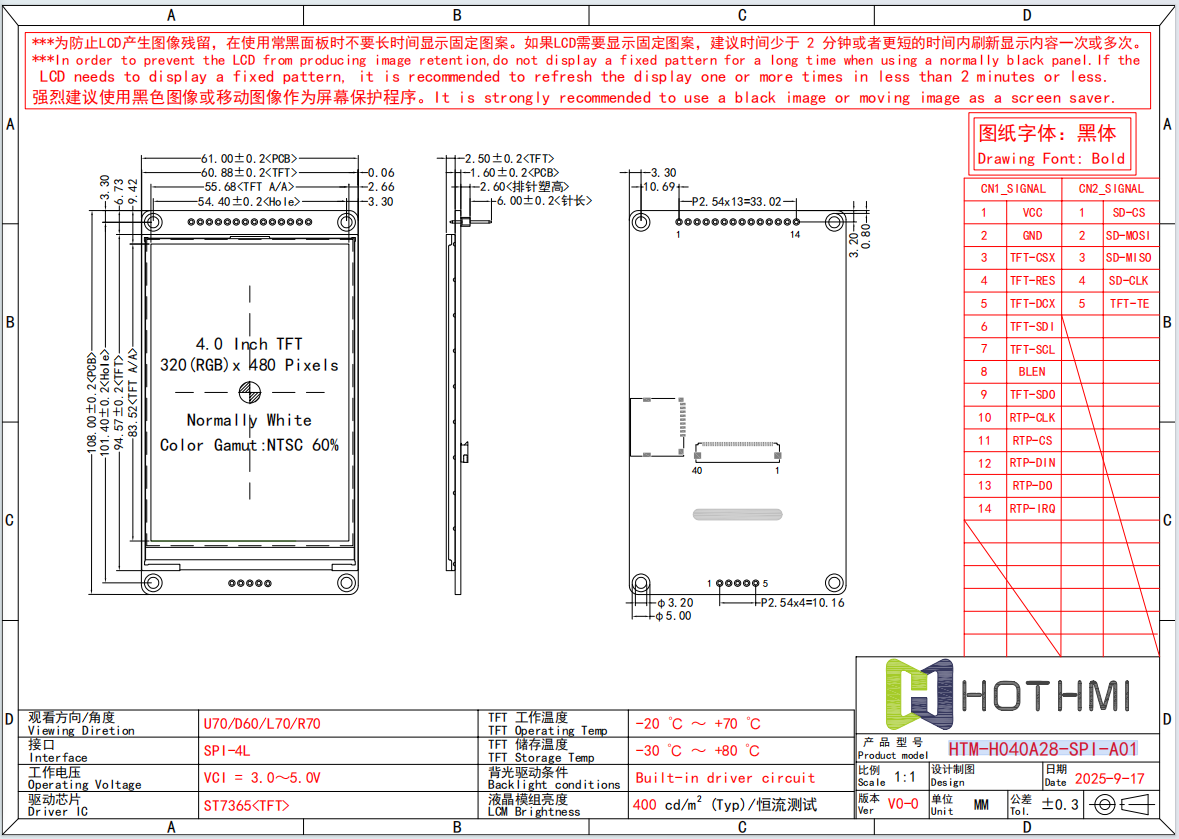

Outline size(mm) ：61.0x108.0x2.5
Size of View Window(mm)：4.0
Display size(mm) ：4.0
Effective size(mm)：55.68x83.52
Product application：handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle
Visual angle：IPS
Backlight type or brightness：400cd/m2
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7365
This 4.0-inch IPS SPI TFT LCD Module is a high-performance display solution designed for a wide range of embedded systems. With a sharp resolution of 320x480 pixels, it delivers vibrant colors and exceptional clarity from all angles thanks to its advanced IPS technology. The compact physical dimensions of 61.0x108.0x2.5mm house an effective viewing area of 55.68x83.52mm, making excellent use of the 4.0-inch screen.
Driven by the robust ST7365 controller, this versatile SPI TFT LCD Module is perfectly suited for development with popular platforms like C8051, Arduino, and STM32. Its high brightness of 400 cd/m2 ensures excellent readability even under direct sunlight. Built for demanding environments, this SPI TFT LCD Module features strong durability with 8KV ESD protection and a wide operating temperature range of -30°C to 80°C. Operating on a 3.3V power supply, it simplifies power design while the SPI interface drastically reduces the number of required GPIO pins. For your projects requiring a reliable and vivid display, this SPI TFT LCD Module offers an ideal balance of performance and ease of integration.
