Product type：TFT Module
Show contents：320x480

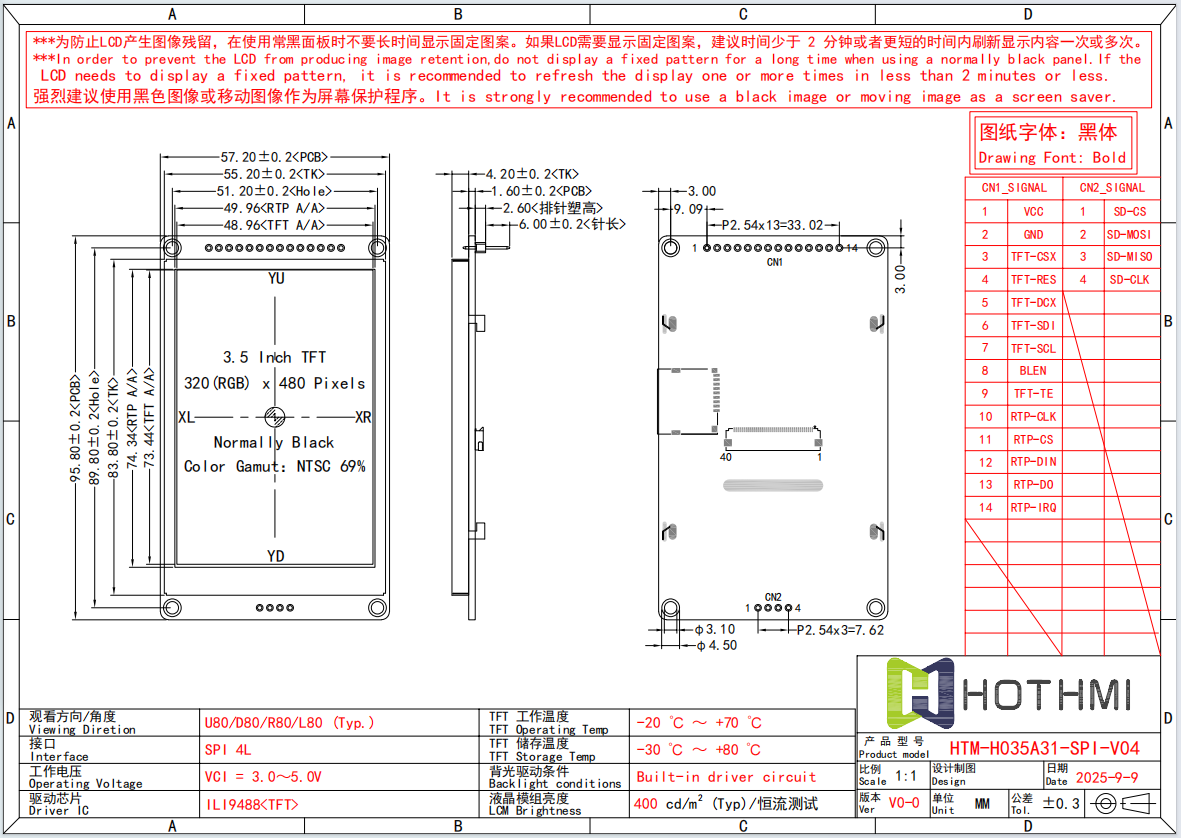

Outline size(mm) ：57.2x95.8x4.2
Size of View Window(mm)：3.5
Display size(mm) ：3.5
Effective size(mm)：48.96x73.44
Product application：industrial control systems, handheld electronic devices,
Backlight type or brightness：400cd/m2
Connection PIN Number：14 PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ILI9488

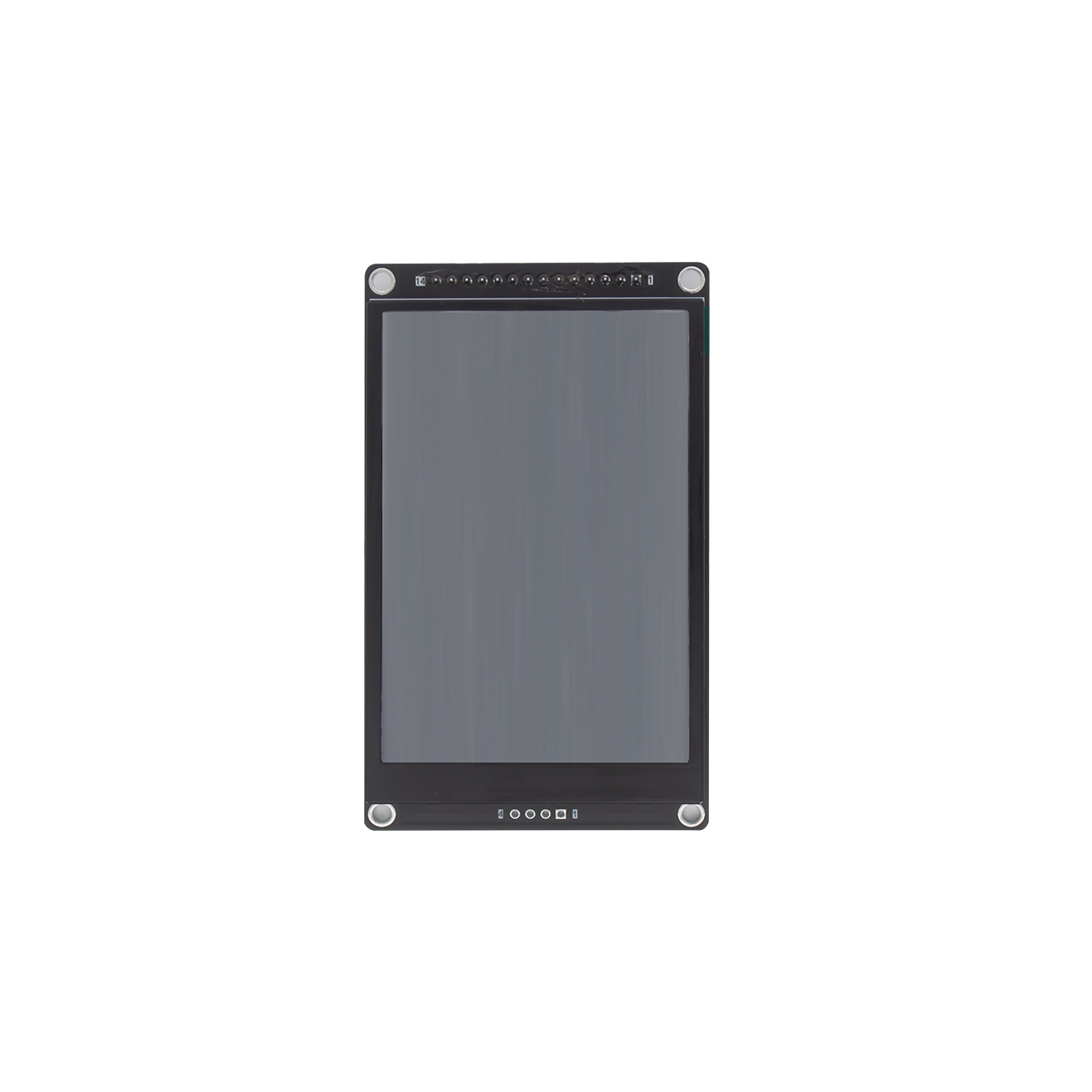

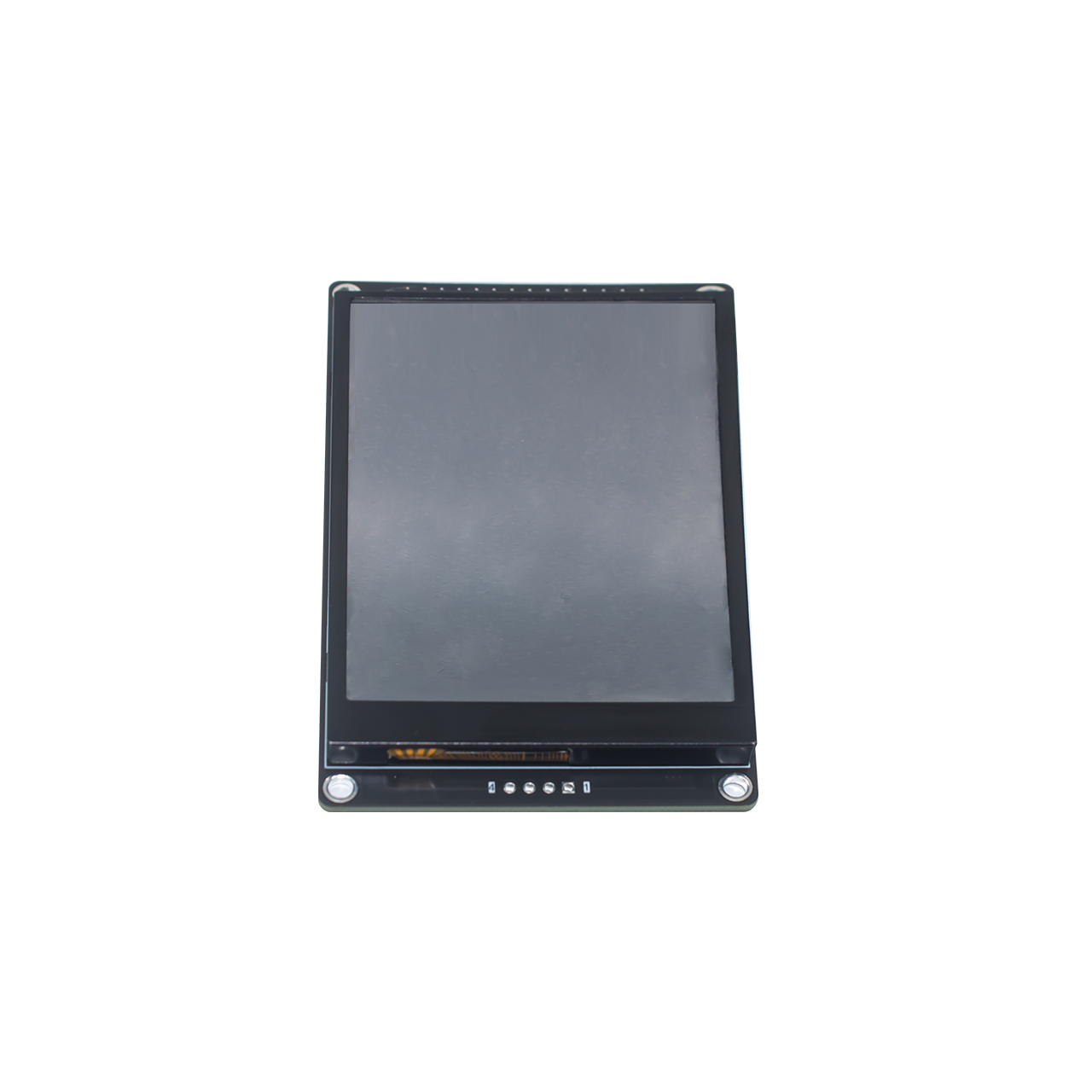

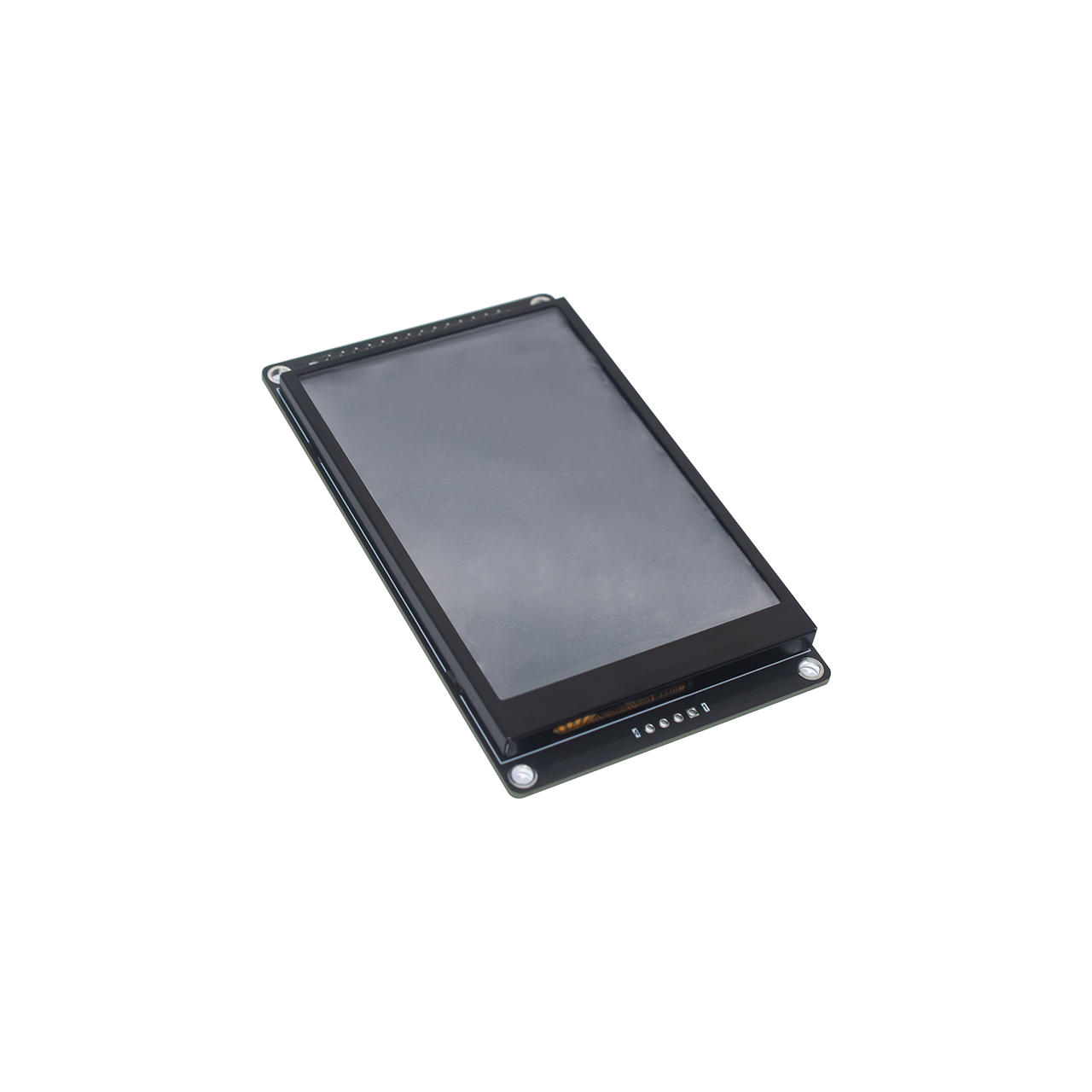

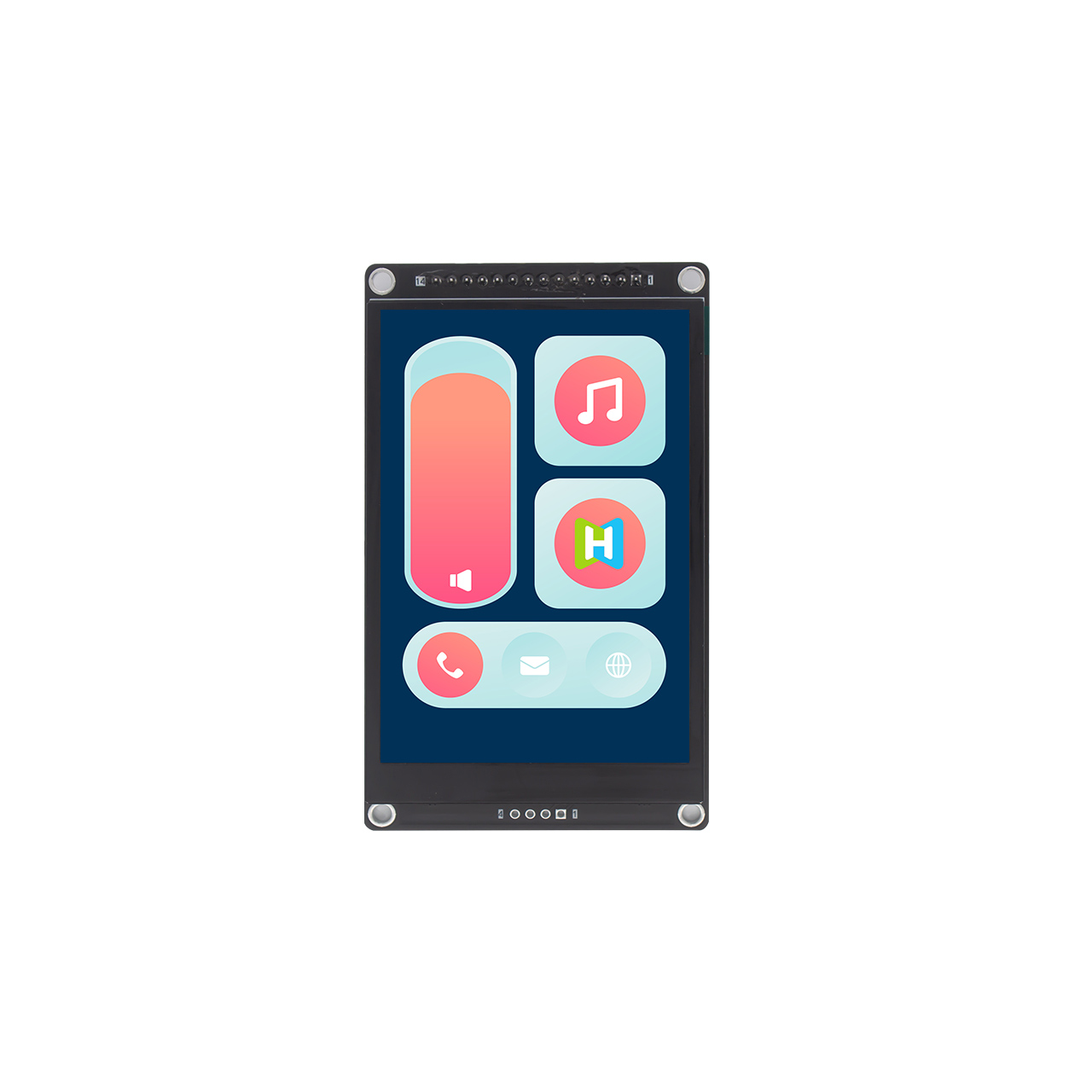

HOTDISPLAY introduces a high-performance 3.5-inch SPI TFT LCD Display with a sharp resolution of 320x480 pixels. This compact SPI TFT LCD Display, features an IPS panel for wide viewing angles and a high brightness of 400cd/m2 for excellent readability.
Driven by the ILI9488 controller and operating at 3.3V, this robust SPI TFT LCD Display is designed for easy integration with popular platforms like Arduino, STM32, and C8051. Its industrial-grade credentials are confirmed by an 8kV ESD protection and an operating temperature range of -20°C to 70°C. This reliable SPI TFT LCD Display is ideal for a wide range of applications requiring a durable and clear interface.
For your next project, choose this versatile SPI TFT LCD Display for a perfect blend of quality and performance.
