With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.5 Inch Capacitive Touch TFT LCD Display With MCU Interface TFT-H035A37HVIST5C40 | TFT Display | 320x480 |
|
54.46x82.94x3.79 | 3.5 | 3.5 | 48.96x73.44 | IPS | 500cd/m2 | 40 PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7365P | |
| 5 Inch High Brightness TFT LCD Display With MIPI DSI Interface TFT-H050A23SVIGHGN50 | TFT Display | 800x480 |
|
120x75.8x2.9 | 5.0 | 5.0 | 108x64.8 | IPS | 1500cd/m2 | 30 PIN | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ||

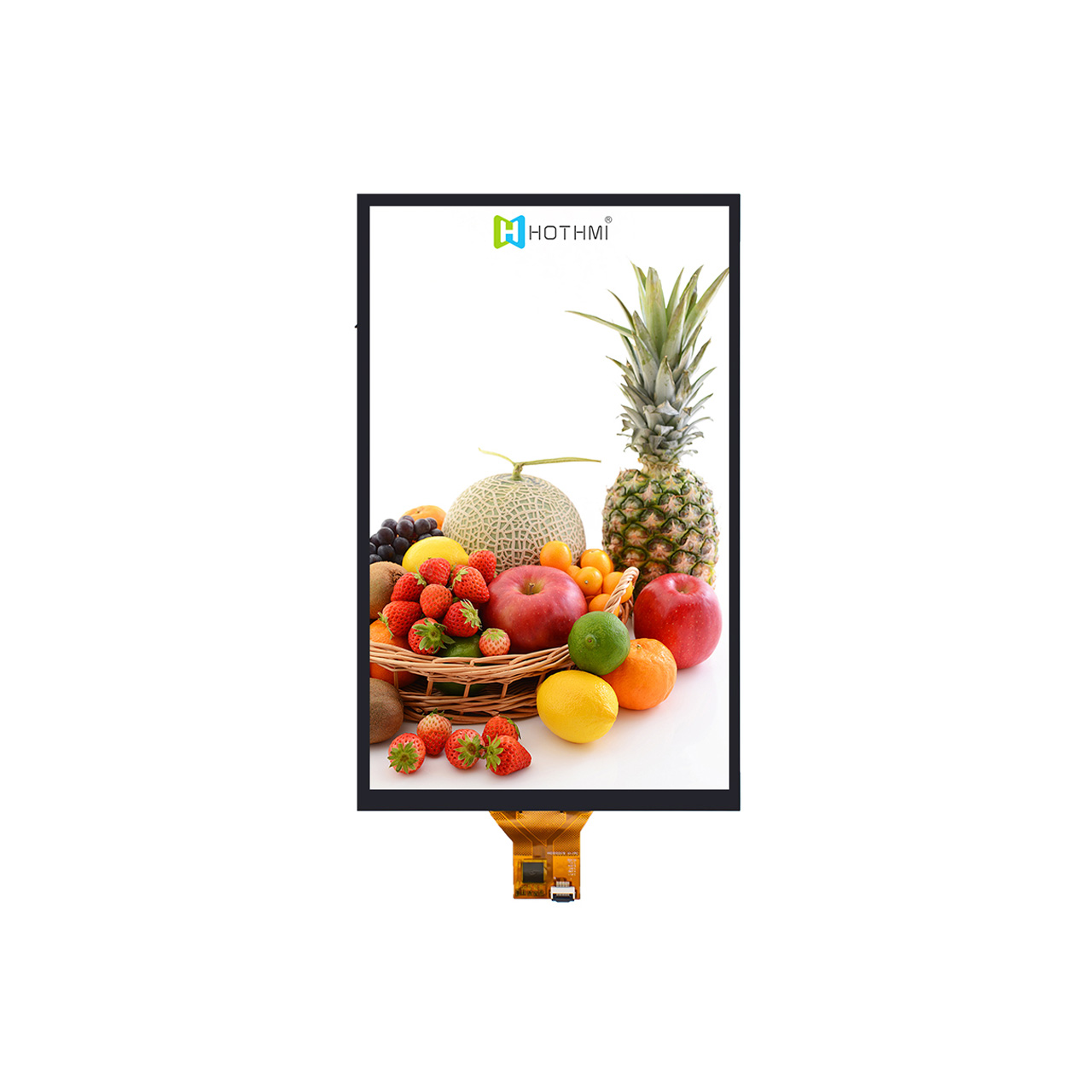

| 8 Inch High Brightness TFT LCD Display With Capacitive Touch Panel TFT-H080A16WUIFLKC40 | TFT Display | 1920x1200 |
|
190.7x128.8x14.5 | 8.0 | 8.0 | 172.224x107.64 | IPS | 1000cd/M2 | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | FL5893 | ||
| 3.5 inch Resisitive Touch TFT LCD Display With ST7265 Controller TFT-H035B36HVTIL2R44 | TFT Display | 320x480 |
|
55.9x85.36x3.9 | 3.5 | 3.5 | 48.96x73.44 | IPS | 300cd/m | 44 pin | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3V | ST7265 | |

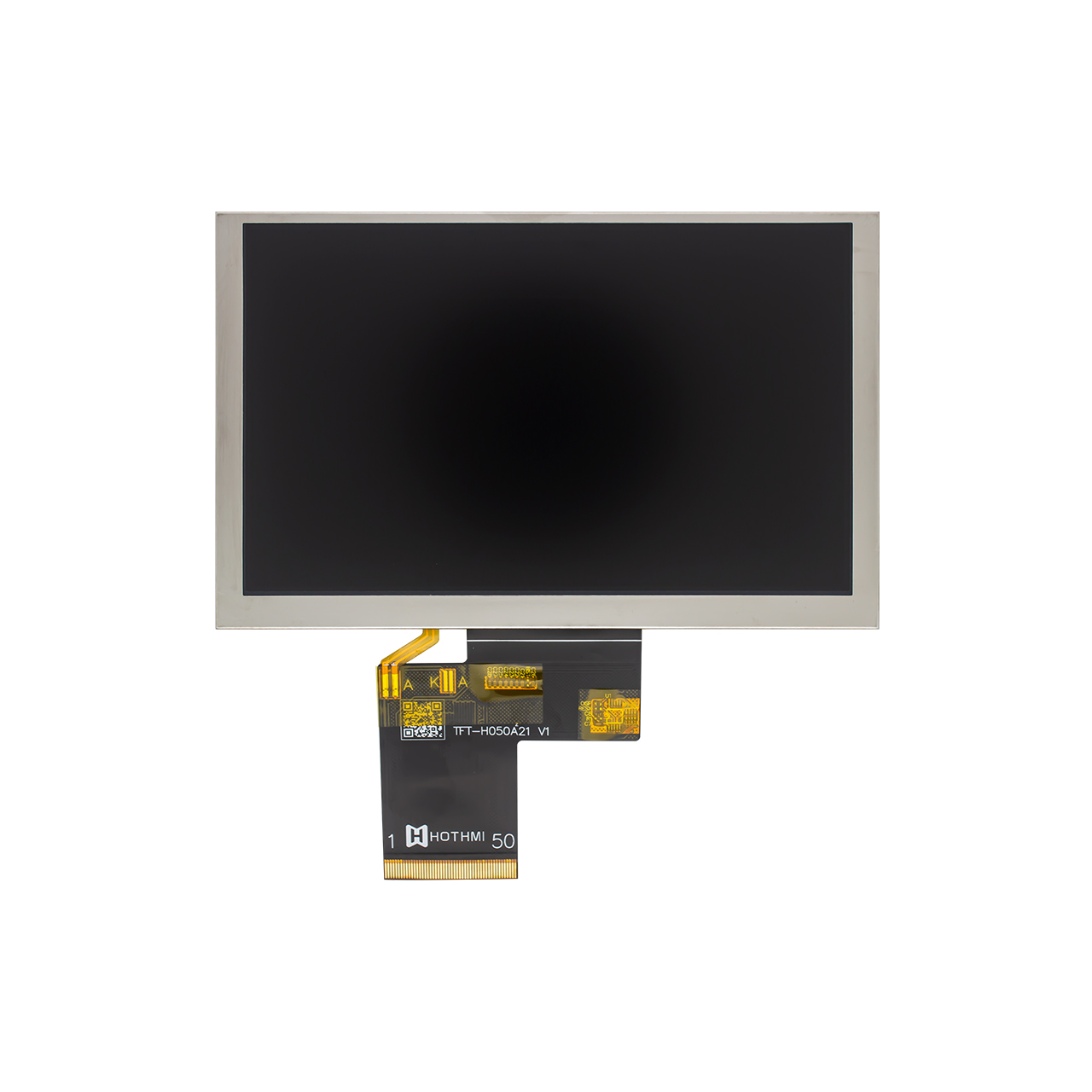

| 5 Inch TFT LCD Display With RGB Interface | High Birghtness LCD TFT-H050A21SVISTGN50 | TFT Display | 800x480 |
|
120.7x75.8x2.9 | 5.0 | 5.0 | 108.0x64.8 | IPS | 1600cd/m2 | 50 PIN | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | ||
| 4.3 Inch 480x800 TFT LCD Display | MIPI Interface With ST7701S Driver Chip TFT-H043A30WVIST4N20 | TFT | 480x800 |
|
60.0x104.25x2.25 | 4.3 | 4.3 | 56.16x93.60 | 56.16x93.60 | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7701S | |||
| 5.0 Inch Horizontal Display TFT Display | 800x480 Resolution High Brightness With MIPI Interface TFT-H050A23SVIGHGN50 | TFT | 800x480 |
|
120.7x75.8x2.9 | 5.0 | 5.0 | 108.0x64.8 | IPS | 1600cd/m2 | 50 PIN | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ||
| 7 Inch 280x1424 TFT LCD Module With LVDS Interface HTM-H070A28-LVDS-A01 | TFT | 280X1424 |
|
38.2x182.47x11.5 | 7.0 | 7.0 | 33.6x170.88 | IPS | 500cd/m2 | 30 PIN | LVDS | Anti-static ESD 8KV | -20~60℃ | +3.3 V | ||
| 4.0 Inch TFT LCD | 240x1020 In-cell Touch Display With RGB Interface TFT-H040A32ZRIAX5N40 | TFT | 240x1020 |
|
25.36x102.805x2.5 | 4.0 | 4.0 | 22.86x97.155 | IPS | 500cd/m2 | 40 PIN | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | ||
| 7.0 Inch TFT LCD With PCAP | 800x1280 Resolution ILI9881C Controller TFT-H070B13HDIIL4C40 | TFT | 800x1280 |
|
108.65x167.85x4.76 | 7.0 | 7.0 | 94.2x150.72 | IPS | 450cd/m2 | 40 PIN | MIPI | Anti-static ESD 8KV | -20~60℃ | +3.3V | ILI9881C |
