Product type:TFT Module
Show contents:1920X1080

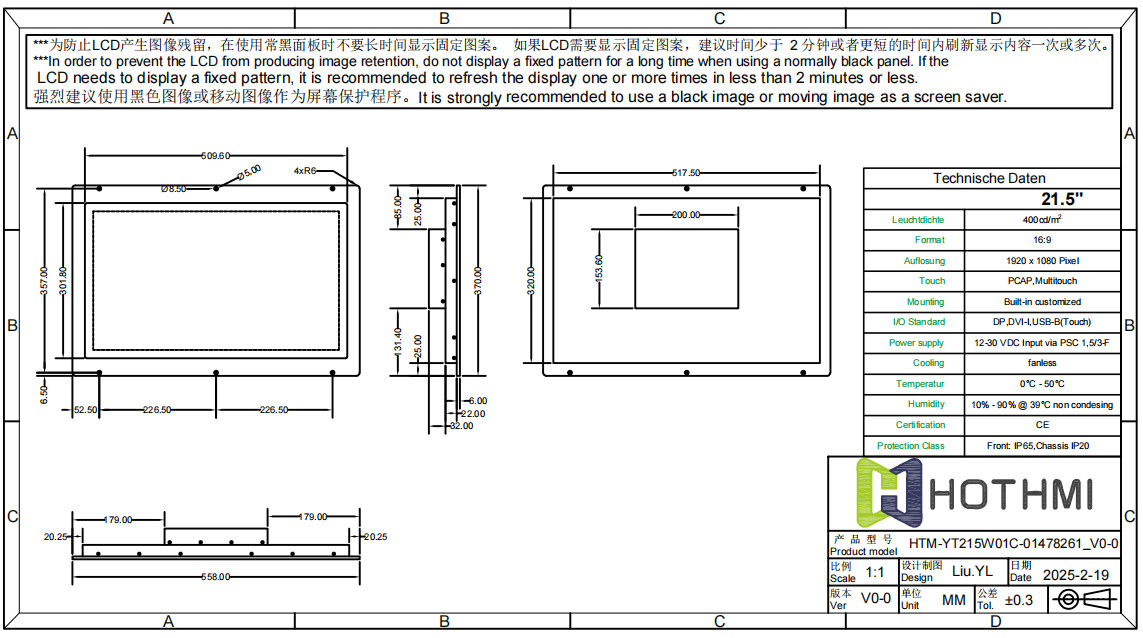

Outline size(mm) :348x275.5x32.0
Size of View Window(mm):21.5
Display size(mm) :21.5
Effective size(mm):334.58x245.04
Product application:Technical equipment, industrial control
Visual angle:IPS
Backlight type or brightness:400cd/m2
Interface mode:HI
Special instructions:Anti-static ESD 8KV
Working temperature:0~50℃
Power supply voltage:12V
This 21.5-inch capacitive touch TFT LCD display is a high-brightness multi-function LCD touch display designed for industrial environments. Its technical core is a 16:9 widescreen format, providing a full HD resolution of 1920 x 1080 pixels to ensure a fine and clear picture. The screen brightness is up to 400cd/m2, which meets the visual needs in strong light environments. It uses a Normally Black Panel and integrates PCAP multi-touch technology, which makes the operation sensitive and smooth. Touch the screen with your fingertips to feel the smooth response brought by PCAP multi-touch technology, and the operation is as natural and smooth as flowing water. Its core uses a Normally Black Panel, which brings a deep and pure black background, making the displayed content seem to be suspended on the glass, with a stronger visual impact.
This 21.5-inch capacitive touch TFT LCD display product realizes the touch function through G+G air bonding or full bonding. It has a metal shell with four holes on the shell. Users can easily fix the display to the front by screwing, which is convenient and reliable. Its sturdy shell is armor against harsh environments. The front panel reaches IP65 protection level, without fear of dust diffusion and high-pressure water flow impact. The whole machine meets IP20 standards and provides basic protection. Whether it is a cold morning at 0°C or a hot afternoon at 50°C, or in a humidity fluctuation of 10%-90% in a non-condensing environment of up to 39°C, it can operate stably, demonstrating its strong industrial-grade adaptability. The CE certification is an authoritative endorsement of its safety and reliability.
