Product type：Character LCD Module
Show contents：16x2
Outline size(mm) ：100X42X13
Size of View Window(mm)：80X20.5
Display size(mm) ：76.37x16.02
Point spacing(mm)：0.83x0.98
Product application：Instruments
Visual angle：12H
Backlight type or brightness：white
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U

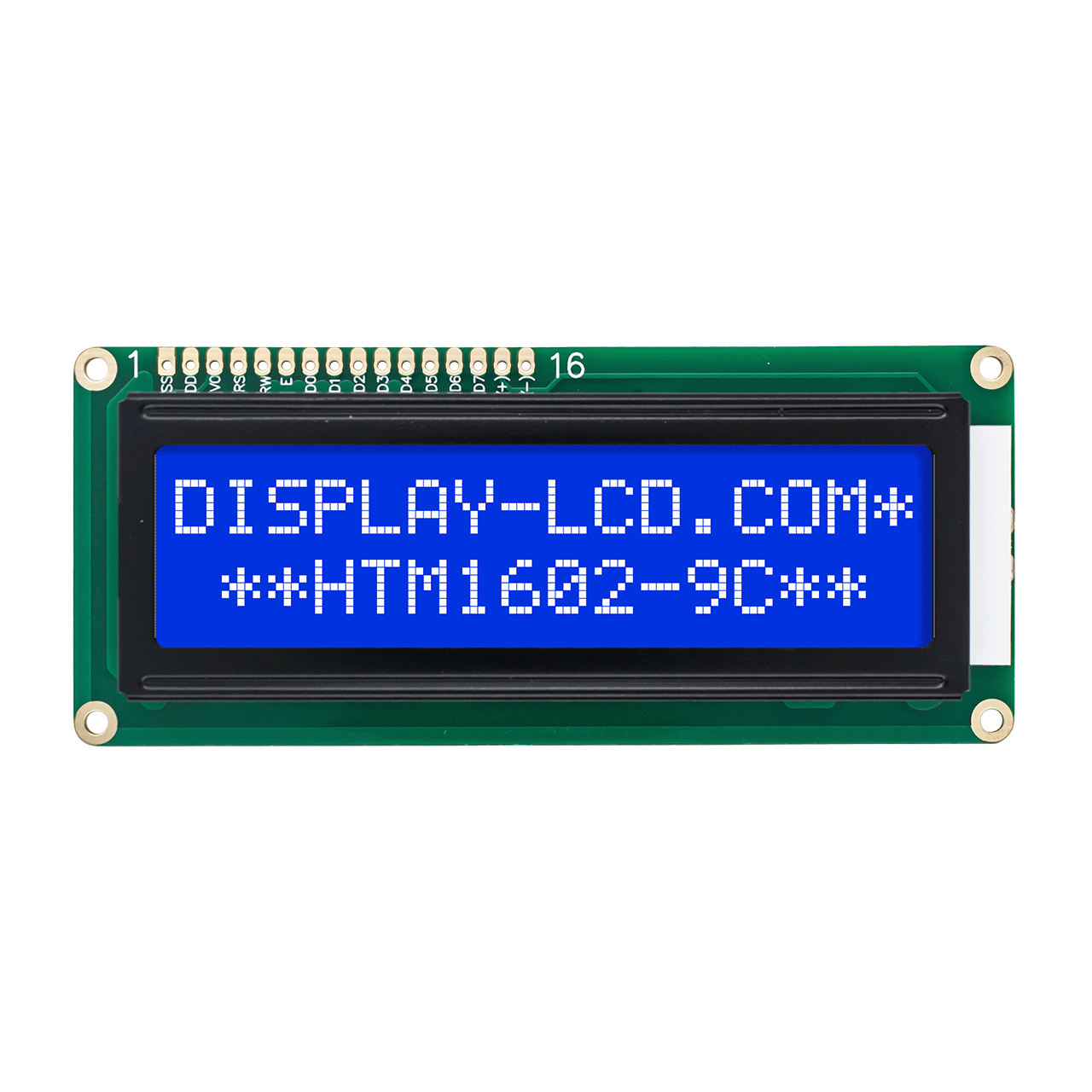

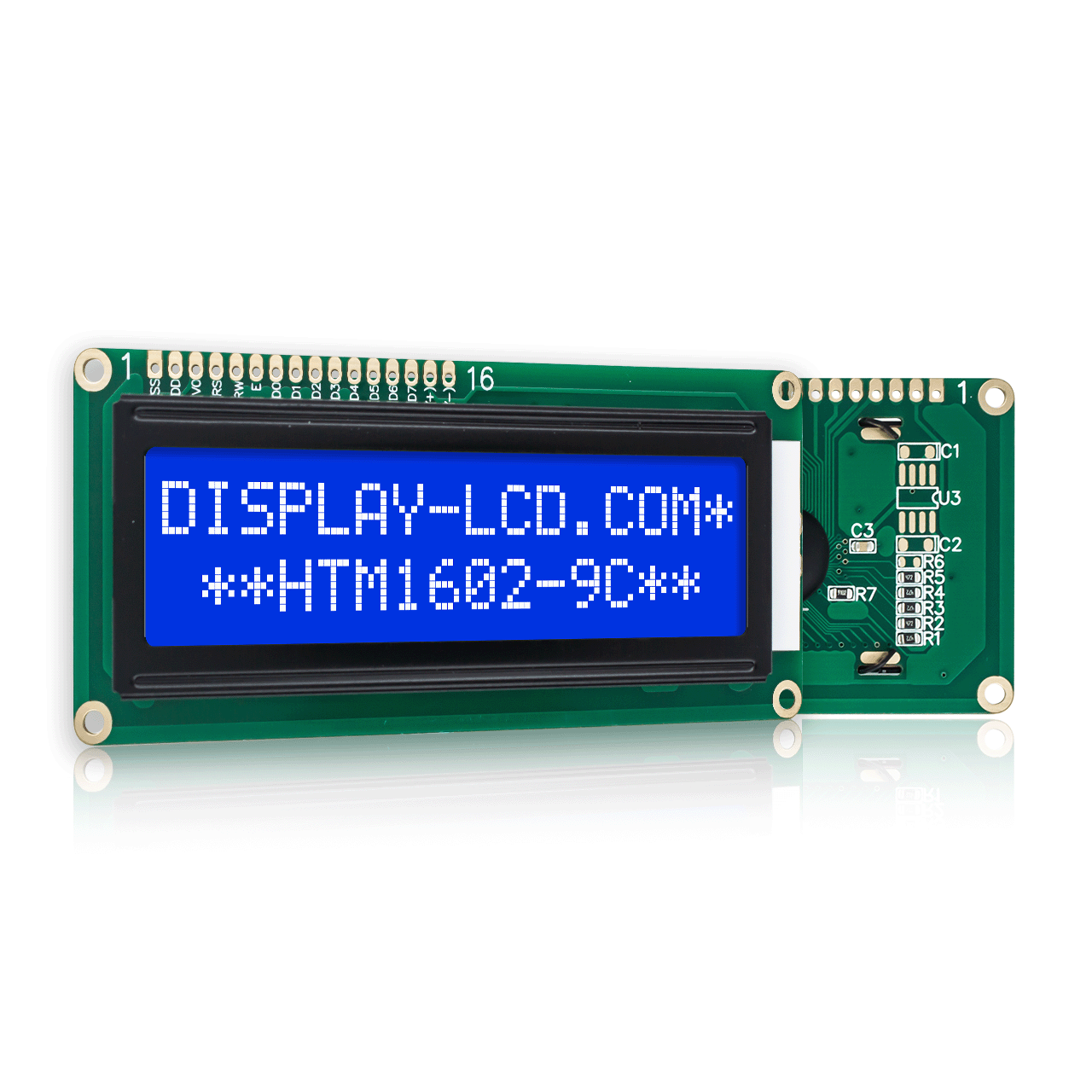

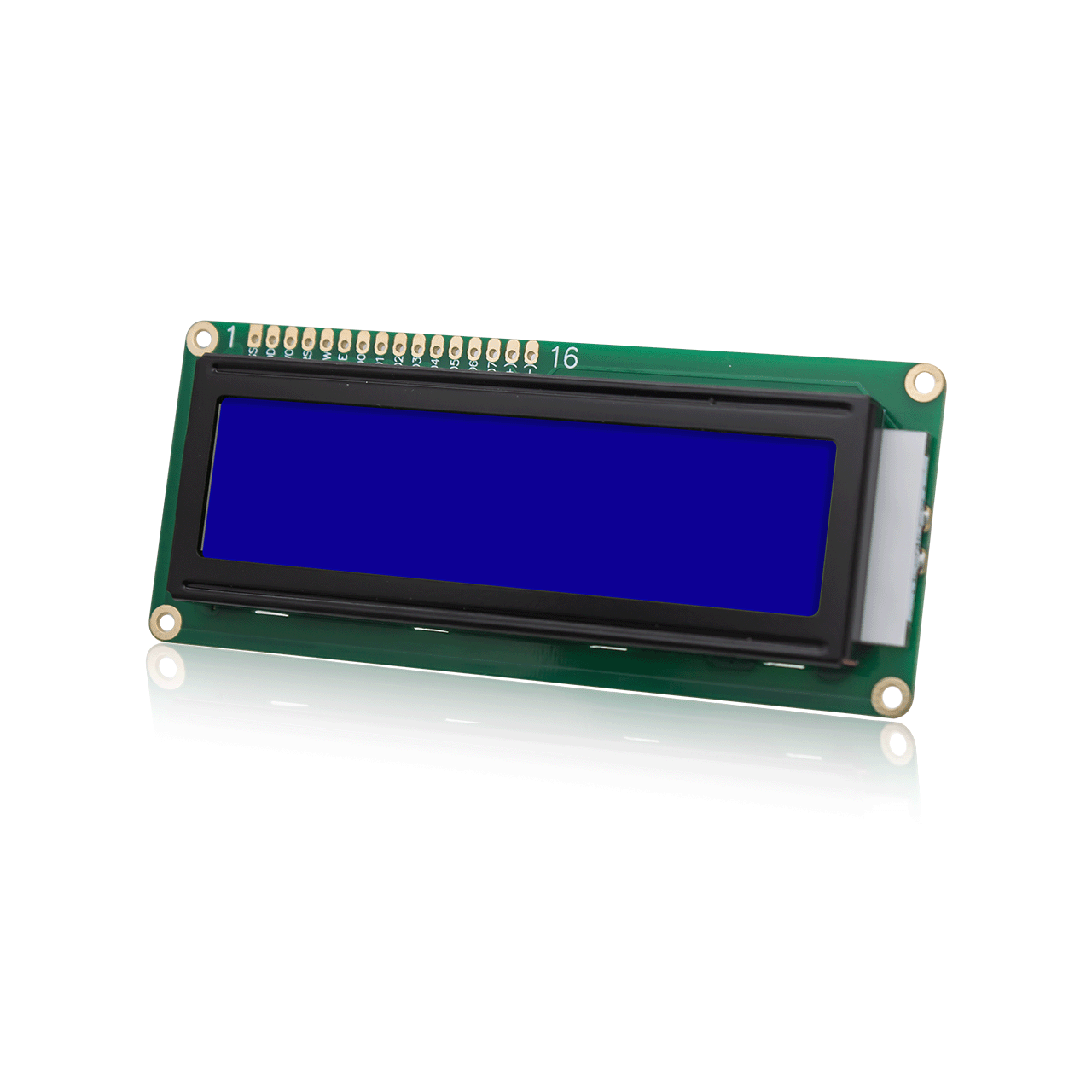

The HOTDISPLAY 16x2 character LCD screen displays characters with white pixels on a blue background when turned on. This type of transparent LCD display requires backlighting to improve visibility while providing a wide operating temperature range of -20 to 70 degrees Celsius. The best view of this HTM1602-9C-25W-A5P monitor is at 12:00. The working power supply voltage of this monitor is 5.0V and complies with RoHS standards.
